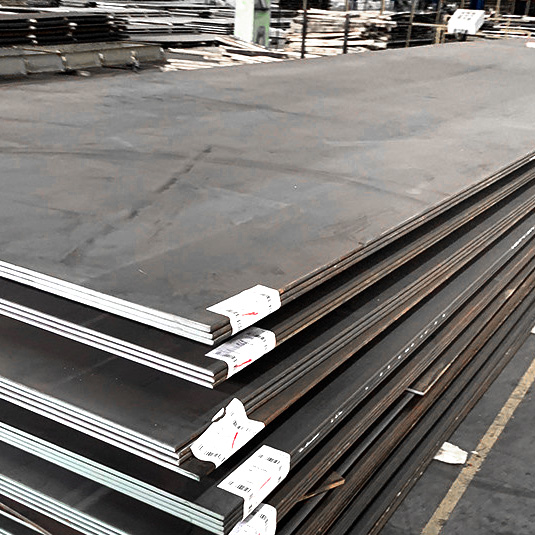

16MnDR
16MnDR is a low-alloy high-strength steel specifically engineered for cryogenic pressure vessel applications. Compliant with GB/T 3531-2014 (China) and internationally recognized, this grade excels in environments demanding exceptional low-temperature toughness, weldability, and resistance to hydrogen-induced cracking.
Chemical Composition
The controlled alloy design ensures balanced strength and ductility:
- Carbon (C): ≤0.20% (optimized to minimize brittleness while maintaining strength).
- Manganese (Mn): 1.20–1.60% (primary strengthening element, enhances hardenability and low-temperature performance).
- Silicon (Si): 0.15–0.50% (improves deoxidation and solid-solution strengthening).
- Phosphorus (P): ≤0.025%, Sulfur (S): ≤0.012% (strictly limited to reduce segregation and embrittlement).
- Optional Microalloys: Niobium (Nb), Vanadium (V), or Nickel (Ni) may be added to refine grain structure and enhance hydrogen resistance.
Mechanical Properties
16MnDR exhibits robust performance across varying thicknesses and temperatures:
- Tensile Strength (Rm): 440–620 MPa (dependent on thickness and heat treatment).
- Yield Strength (ReL):
- 6–16mm: ≥315 MPa
- 16–36mm: ≥295 MPa
- 36–60mm: ≥285 MPa
- 60–100mm: ≥275 MPa
- 100–120mm: ≥265 MPa
- Elongation (A): ≥21% (ensures ductility under deformation).
- Low-Temperature Toughness:
- -40°C Charpy V-Notch Impact: ≥47J (critical for cryogenic integrity).
- Bend Test: Passes 180° bending (diameter 2a–3a based on thickness).
Applications
16MnDR is pivotal in industries requiring reliability under extreme conditions:
- Energy & Petrochemical:
- LNG storage tanks (-162°C), hydrogenation reactors, cryogenic pipelines.
- Offshore platforms and subsea equipment (resists marine corrosion).
- Power & Nuclear: Pressure vessels for nuclear reactors, boiler components.
- Chemical Processing: Reactors for acetic acid, sulfuric acid, and chlorine derivatives.
- Aerospace & Shipbuilding: Structural components for cryogenic fuel tanks and marine vessels.
Global Equivalent Grades
16MnDR aligns with international standards for cross-border engineering projects:
SA516 Gr.70 - ASTM A516/A516M
P355GH - EN 10028-2
SLCMN440 - JIS G3115
P355NH - ISO 9328-2
Advantages
- Cost-Effective: Superior performance-to-cost ratio compared to high-nickel alloys.
- Weldability: Compatible with SMAW, SAW, and GTAW processes; preheating optional for thin sections.
- Certifications: Complies with ASME, PED, and GB/T 713 for global regulatory compliance.
Technical Support
Our solutions include:
- Custom processing (plates up to 200mm thickness, 4100mm width).
- HIC/SSCC testing and Z-directional property enhancement.
- Expedited delivery (15-day lead time for standard orders).
For project-specific requirements or material certifications, consult our engineering team to ensure optimal performance.
