The Engineering Nuances of Steel Coil Leveling: Beyond Simple Uncoiling

A:​​ Isn't leveling just a large-scale cutting process? How does it differ from unrolling fabric?

​B:​​ The distinction lies in material mechanics. Fabric regains flatness when unrolled, whereas cold-rolled steel coils retain plastic deformation memory—residual stress from coiling causes continuous rebound. Leveling's core function is elastic-plastic deformation correction via straighteners, far surpassing simple cutting.

​A:​​ So it's like pressing a spring? Can repeated bending flatten it?

​B:​​ Industrial-level straightening must overcome three technical barriers:

1. ​Curvature Gradient Complexity: Inner coil curvature can be 3× higher than outer layers. Traditional "small-deformation reverse bending" fails to adapt to continuous curvature shifts.
2. 2.​Three-Step Straightening Law:
   • High-Deformation Uniformity: Apply 30–50% overbending force to eliminate inner/outer curvature differences
   • Stepwise Pressure Reduction: Gradually release residual curvature via decreasing bend angles
   • Micro-Defect Correction: Target secondary deformations with ≤0.2mm/m precision

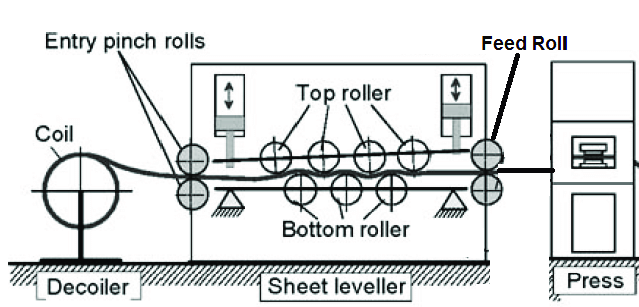

3. ​Roller System Evolution: Modern 11-roll systems use collective tilt control, reducing bend force by 40% with near-zero residual curvature.

​A:​​ Can adjusting two parameters control the entire line?

​B:​​ Parameter combinations have infinite solutions but divergent stability:

• Adjustment Paradox: For fixed entry reduction, 5–8 exit reduction combinations achieve flatness
• Sensitivity Threshold: Every 1mm entry reduction increase raises shape-defect risk by 22%
• Case Study: For 0.8mm HSLA steel in EV battery trays, entry reduction must stay within 2.3±0.1mm—exceeding thins thickness by 0.1mm; undershooting causes waviness

​A:​​ Is the theoretical model mature for multi-objective optimization?

​B:​​ Academic research faces five idealization traps:

1. Material Variance: DP780 steel yield strength fluctuates ±8% at 20% line-speed increase
2. Thinning Loss: Each pass thins material by 0.3–1.5%
3. Material Inhomogeneity: ±0.05mm thickness variance within one coil
4. Friction Instability: Roller temperature rise >50℃ alters friction coefficient by >15%
5. Machine Frame Elasticity: 0.12mm frame deformation under 3,000-ton forces

​Industry Pain Point: Automakers demand ≤15MPa residual stress post-leveling, yet AI models show 30% prediction errors—sustaining master operators' priceless intuition.

The Dual Philosophy: Precision & Adaptability

​Precision Hardware:

• 9-roll straighteners with laser closed-loop control (0.15mm/m compensation)
• Diamond-coated rollers (3× wear resistance; anti-scratch protection)

​Adaptive Expertise:

• Bend-rebound mapping tables from 100k+ datasets
• Philosophy shared with metal forging: anticipate material "temper" to counteract rebound

Smart Manufacturing Breakthrough

Process Efficiency Synergizer (PES) uses IoT for real-time data collection. With sensitivity-analysis algorithms, it cuts optimization time by 300%, nearing self-sensing straightening.
