Why Loader Blades Are Switching to Wear-Resistant Steel: A Comprehensive Analysis of NM400/NM500 vs Q550D

​​I. Field Working Conditions: Blades Are All About "Wear Resistance," Not "Tensile Strength"​​

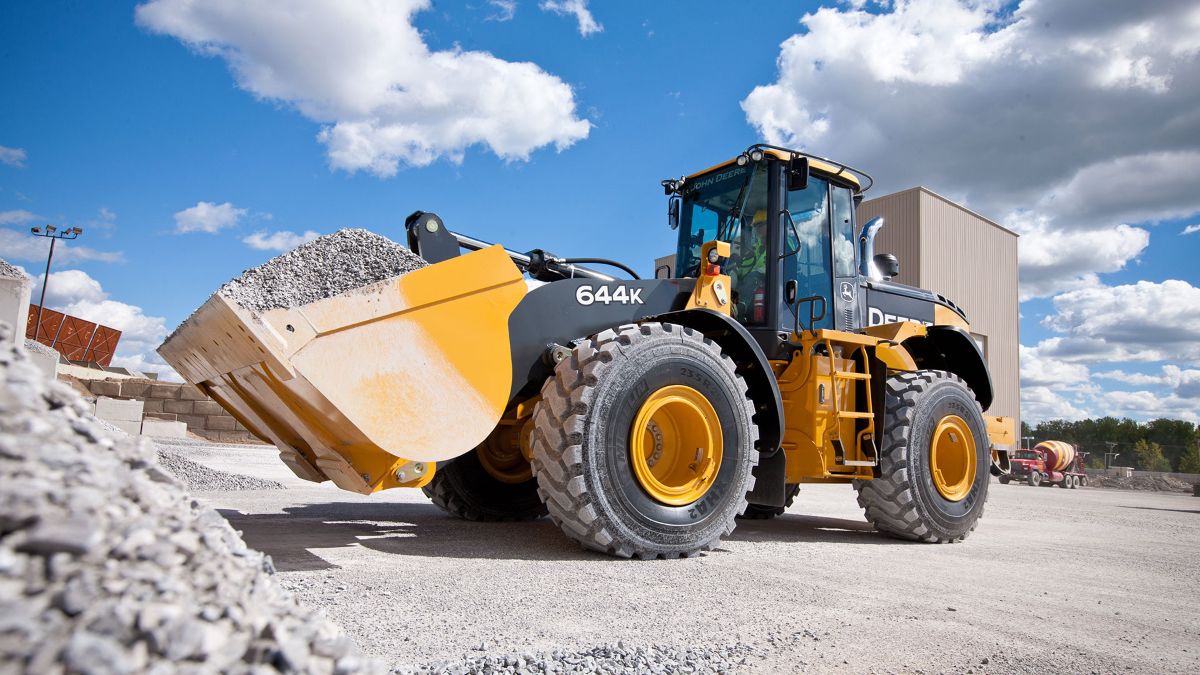

Loader blades (including the blade face, baseplate, side plates, and cutting edge) endure long-term sliding and impact wear from ores and gravel. The primary failure modes are surface thinning, grooving, and curling, while overall structural failure is secondary. The wear mechanism can be summarized by ​Archard’s Law: wear volume ∝ (load × sliding distance) / material hardness. Thus, higher surface hardness significantly slows thinning, which is the fundamental reason manufacturers are upgrading critical components to wear-resistant steel plates.

​II. Hardness vs. Strength: Wear-Resistant Steel Maximizes "Hardness"​​

• Q550D: A high-strength structural steel excels in yield/tensile strength and low-temperature toughness, making it suitable for load-bearing components (e.g., frames, booms). However, its hardness is only ​HBW≈170–220, causing rapid material loss in high-abrasion environments

• ​NM400/NM500: Low-alloy wear-resistant steels balance strength but prioritize high hardness and wear life:
  • ​NM400: HBW≈360–430
  • ​NM500: HBW≈450–530
  • With double the hardness, wear rates decrease inversely proportionally, extending blade life by ​2–4 times​ (varies by工况)

​IV. Why Switch from Q550D to NM400/NM500?​​

1. ​Wear Life: Q550D’s low hardness allows abrasive particles to "cut + plow" the metal, accelerating thinning. NM400/NM500’s high surface hardness resists plowing, drastically extending life
2. ​Downtime Costs: Frequent blade replacements mean downtime = lost wages + labor costs + welding materials. Switching to wear-resistant steel reduces annual total costs
3. ​Weight & Efficiency: For the same lifespan, wear-resistant steel allows moderate thinning (with careful evaluation), reducing weight and improving loading efficiency
4. ​Adequate Strength: NM series steels exceed ordinary structural steel in strength, meeting blade stiffness and anti-denting needs
5. ​Price & Supply: Domestic production and stable bulk supply have narrowed the price gap with high-strength steel, offset by longevity advantages

​V. Recommended Materials for Loader Blade Components (General Solution)​​

• Cutting Edge/Blade (Highest Wear Zone)​: Prioritize ​NM500​ (20–40mm thick), complemented by welded overlays or bolt-on replaceable tips

• ​Blade Face/Baseplate/Side Plates (Large-Area Wear)​: Mainly ​NM400​ (6–20mm), with localized ​NM500​ liner upgrades in material flow paths

• ​Reinforcing Ribs/Structural Components: ​Q355B/Q460​ or ​Q550D​ structural steels are more suitable (better weldability and deformation control)

• ​Combination Strategy: Use high-strength structural steel for frameworks and wear-resistant steel for surfaces, balancing longevity and maintainability

​VI. Processing and Welding Tips (Avoid "Assembly Struggles and Service Failures")​​

• Cutting: Plasma/flame cutting acceptable; post-cut grinding to remove slag and chamfering to relieve stress concentration

• ​Cold Bending/Rolling: Prefer large radii; avoid sharp bends. For thick plates, use step-by-step forming or mold pressing to prevent surface microcracks

• Welding:
  • Use low-hydrogen electrodes (e.g., E7018 equivalent or matching wires); control heat input and interpass temperature
  • Preheat moderately for thick plates and winter operations
  • Avoid long welds on full NM500 components; prefer assemblies with wear-resistant liners + structural steel supports
• Maintenance: Reserve overlay welding areas or replaceable liner positions in high-wear zones for economical upkeep

​VII. Simplified Cost-Benefit Analysis (Example for Decision-Making)​​

A gravel field loader using Q550D cutting edges required replacement every ~600 hours. After upgrading to ​NM500, replacement intervals extended to ​1,200–1,800 hours. Concurrently switching the blade face from ordinary structural steel to ​NM400​ reduced annual downtime by ​1–2 instances, cutting parts and labor costs by ​20–40%​​ (varies by material/shift system). Conclusion: Despite slightly higher unit costs, annual total costs drop significantly, ensuring steadier equipment availability and shift earnings.

​VIII. Our Capabilities (Stock + Processing, All in One Place)​​

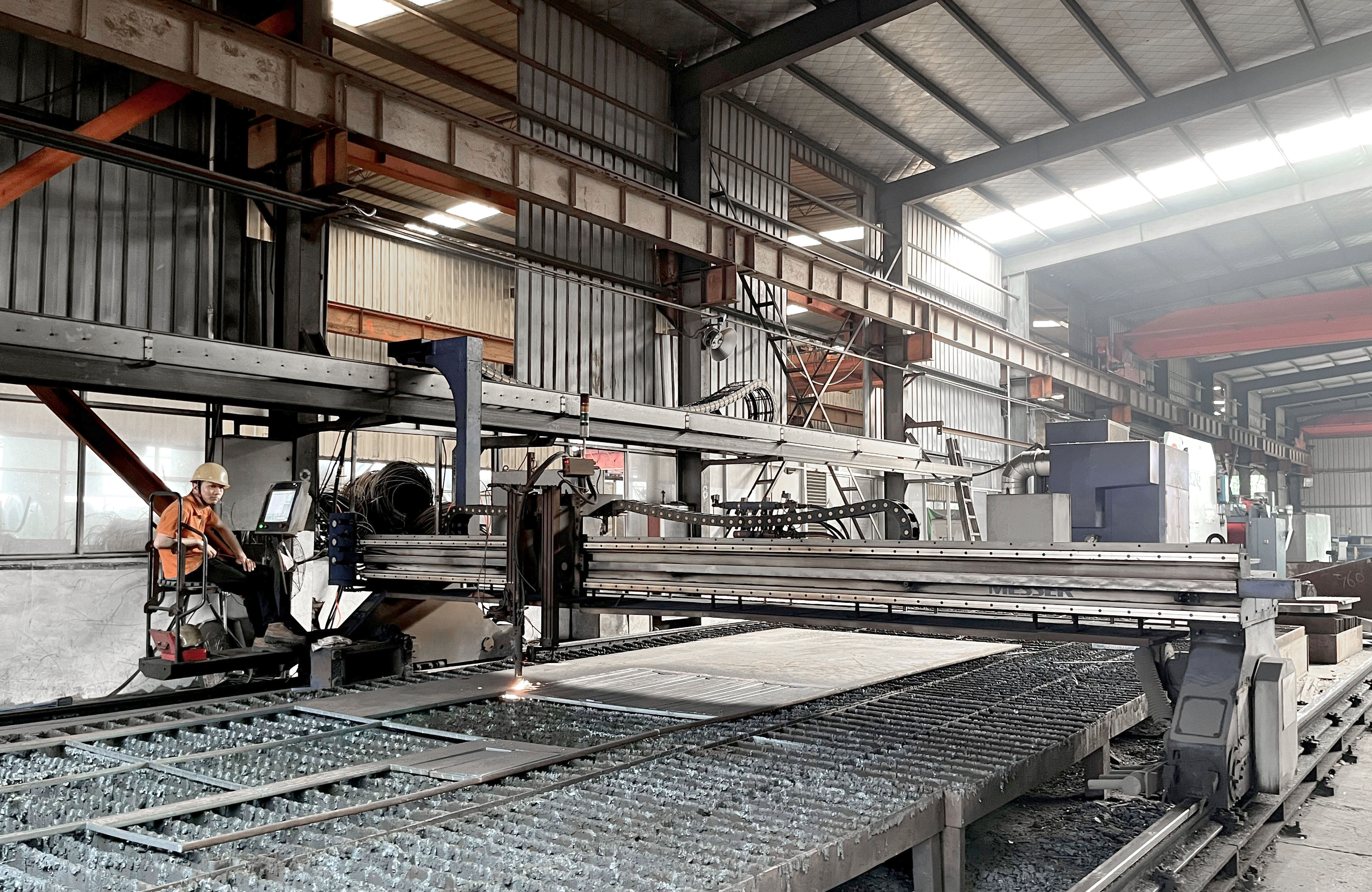

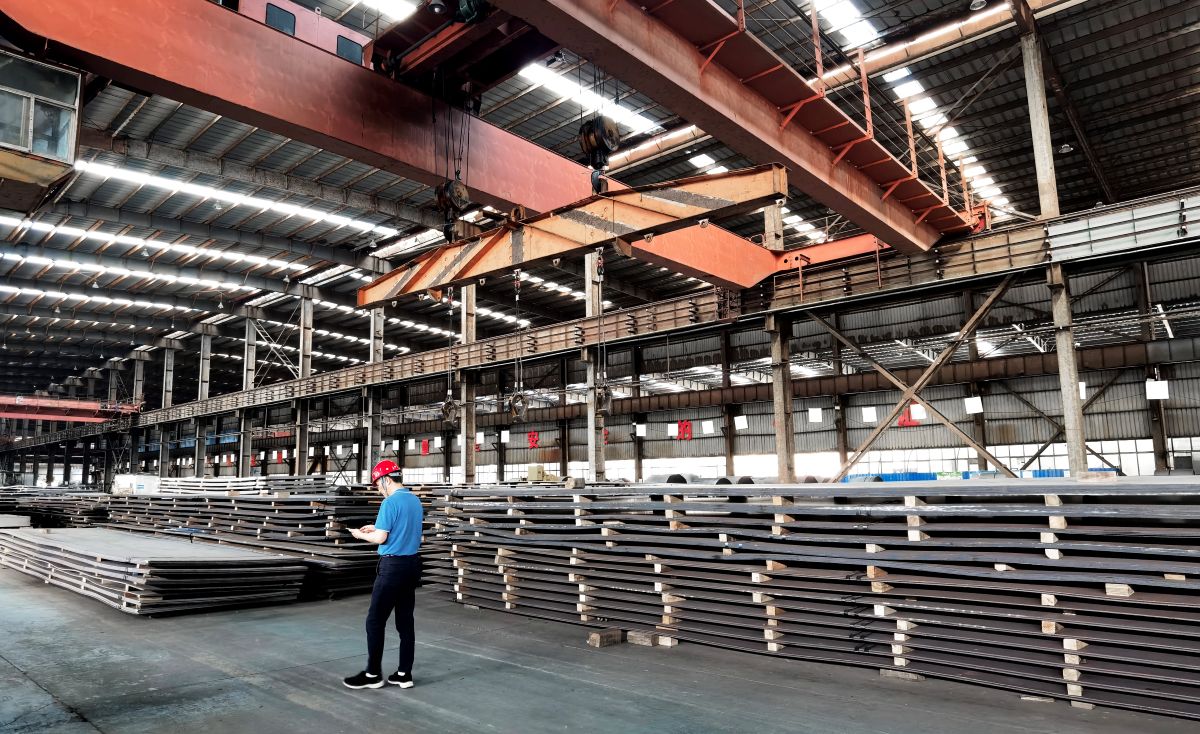

Baohui Steel maintains a massive inventory of wear-resistant steel, including NM400/NM500 in thicknesses of 2, 3, 4, 6, 8, 10, 12, 16, 20, 25, 30, 40, 50, and 60mm (custom rolling/transfer available for more specs). We offer one-stop services: cutting, bending, rolling, drilling, grinding, beveling, custom blade kits, and on-site measurement and plate replication. Technical support includes component material selection, thickness verification, welding process advice, and lifespan assessment and optimization.
